Ultrasonic Cleaner Bath Specifications & Parameters

Ultrasonic Cleaner Bath Specifications & Parameters

Are you looking for a digital ultrasonic bath or an industrial ultrasonic parts cleaner? Here are the detailed ultrasonic cleaner specifications and parameters for your reference. The technical specifications will help you to buy the best ultrasonic washing machine. For better understanding, we will make a further introduction of Anonkia sonic cleaners.

How Many Types of Anonkia Ultrasonic Cleaner We Supply?

We are one of the best ultrasonic cleaner manufacturers in China. We have been supplying professional ultrasonic cleaning equipment for both commercial and industrial cleaning. But in general, the products vary two main types:

A. Large Industrial Ultrasonic Cleaning Tanks

Here is the industrial ultrasonic cleaner with a customized large ultrasonic cleaning tank. Various volumes and sizes of the stainless steel ultrasonic bath are available. Because we can make the ultrasonic water tank by hand according to the sizes of cleaning items.

But for quick choice, we can have some of the most common volumes and water tank sizes. These are the volumes of 60L, 88L, 100L, 150L, 200L, 240L, 300L, 500L, 800L, and 1000L above. So, the buyer can choose the existing volume and water tank size. Or you may ask us to make some changes so that it fits the cleaning objects.

This is the best ultrasonic parts cleaner for both commercial and industrial cleaning. Especially for massive cleaning for industrial use.

B. Benchtop Ultrasonic Cleaner Series

The benchtop series is the standard portable ultrasonic washer. The volume of the ultrasonic bath varies 1.3L, 2L, 3L, 4L, 6L, 10L, 15L, 20L, and 30L. Each volume has a standard internal tank size. That’s because the cleaning bath is a one-time stamp formed. But it can have different operating modes and functions. So, we further classify the benchtop series as the following series:

  • T Series: Mechanical with timer series
  • HT Series: Mechanical with timer and heater series
  • HTD Series: Digital with timer and heater series
  • HTDP Series: Digital with timer and heater, plus variable power
  • HTDS Series: Digital with timer and heater, plus adjustable frequency

These kinds of ultrasonic baths are almost for commercial and part of industrial use.

Now, you can understand what kind of ultrasonic washing machine you need. Check the following detailed ultrasonic bath specifications and parameters. And choose the right models you need.

1. Large Industrial Ultrasonic Cleaning Tanks Series

Industrial Ultrasonic Cleaner
Industrial Ultrasonic Cleaner

This is the industrial ultrasonic cleaner with a large capacity ultrasonic cleaning tank. It is excellent for both commercial and industrial cleaning use. The large ultrasonic tank is made of thick SUS304 stainless steel by hand. It can work 24 hours a day continuously and suitable for mass cleaning work.

This industrial ultrasonic bath comes with independent generators. With an automatic sweep frequency function, it can fully drive the power of transducers. This makes it with very strong cleaning power and a perfect cleaning effect.


Large Industrial Ultrasonic Cleaning Tank
Large Industrial Ultrasonic Cleaning Tank

The ultrasonic cleaning and heater are independent, this makes ultrasound signals very stable. The heater won’t affect the ultrasound cleaning. Also, this ultrasonic cleaning tank design is very easy for maintenance.

Various water tank sizes, ultrasonic power, and frequency are available. So, the large industrial ultrasonic cleaning tank is available for any size of items.

Ultrasonic Cleaner Frequency:

The most common ultrasonic frequencies are 28KHz and 40KHz. Except for that, there are more single frequency and dual-frequencies for choices.

  • Single frequency: 20KHz, 25KHz, 60KHZ, 68KHZ, 80KHZ, 100KHZ, and 120KHZ, and 130KHZ.
  • Double frequencies: 28/40KHZ, 25/45KHZ, 32/68KHZ, 40/80KHZ, 40/100KHZ, 40/120KHZ, 40/135KHZ, 80/120KHZ.

Features Description:

  • Operating Mode: Digital control with Timer + Heater
  • Temperature Settings: 0-100°C adjustable
  • 5-100% Ultrasonic power adjustable
  • Automatic sweep frequency and fine turning mode
  • Extra long time running continuously for 24 hours
  • Man hand made thick stainless steel ultrasonic cleaning tank

Download E-catalogue of Industrial Ultrasonic Parts Cleaners as below:

More Large Ultrasonic Cleaning Tanks Specifications and Parameters for Choices

Industrial Ultrasonic Cleaning Tanks Specifications

2. KHTD Digital Heated Ultrasonic Cleaner Series

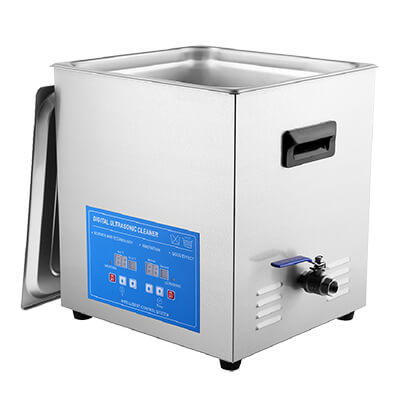

Digital Ultrasonic Cleaner
Digital Heated Ultrasonic Cleaner

This is the heated ultrasonic cleaner with a digital timer and heater. It is different from a mechanical ultrasonic cleaner. You can set the working time from 1 to 99 minutes, and set the heating temperature from 0°C to 80°C by the digital buttons. Sincere the digital ultrasonic cleaner comes with an LED digital display. So, the working time and heating temperature are visible.

Features Description:

  • Operating Mode: Digital control with Timer + Heater
  • Timer Settings: 1-99 minutes
  • Temperature Settings: 0-80°C adjustable
  • Standard one-time stamping formed stainless steel ultrasonic tank

Download E-catalogue of KHTD Digital Ultrasonic Cleaners as below:

More KHTD Digital Ultrasonic Cleaner Specifications and Parameters for Choices

KHTD Digital Ultrasonic Cleaner Specifications

3. KHTDP Variable Power Ultrasonic Bath Sonicator Series

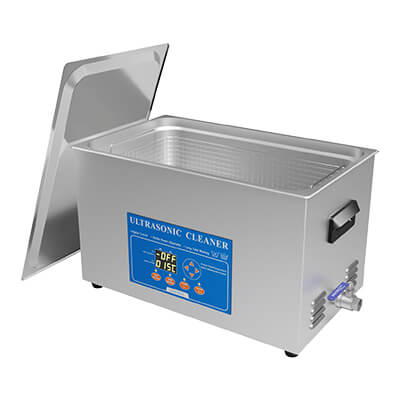

Ultrasonic Bath Sonicator
Variable Power Ultrasonic Bath Sonicator

Here is the high-end variable power ultrasonic bath with power adjustable function. It is different from the previous digital ultrasonic cleaner. The ultrasonic power is variable and visible, and you can choose the needed power. It is the best sonicator bath for laboratory use.

The automatic sweep frequency function makes it match the transducers very well. The optimized circuit board ensures the ultrasonic bath with much stronger cleaning power. Industrial grade designing makes the machine ideal for both commercial and industrial cleaning.

Features Description:

  • Operating Mode: Digital control with Timer + Heater
  • Timer Setting: 1-99 minutes
  • Temperature Settings: 0-100°C adjustable
  • 5-100% ultrasonic power-adjustable
  • Automatic sweep frequency mode
  • Extra long time running continuously
  • Standard one-time stamping formed stainless steel ultrasonic water bath

Download E-catalogue of KHTDP Variable Power Ultrasonic Bath as below:


More KHTDP Variable Power Ultrasonic Bath Sonicator Specifications and Parameters for Choices

Ultrasonic Bath Sonicator Specifications

4. KHTDS Variable Frequency Ultrasonic Cleaner Series

Variable Frequency Ultrasonic Cleaner
Variable Frequency Ultrasonic Cleaner

Here is the second high-end variable frequency ultrasonic cleaner for the laboratory. It is with a genuine dual-frequency of 28/40KHz. This is different from the simulated dual-frequency ultrasonic cleaners. Because it comes with the real double frequencies transducers. An automatic sweep frequency function will make sure an excellent cleaning effect.

Features Description:

  • Operating Mode: Digital control with Timer + Heater
  • Timer Settings: 1-99 minutes
  • Temperature Settings: 0-100°C adjustable
  • Genuine double frequency of 28KHz and 40KHz
  • 5-100% Ultrasonic power-adjustable
  • Automatic sweep frequency mode
  • Standard one-time stamping formed stainless steel ultrasonic cleaning bath

Download E-catalogue of KHTDS Dual Frequency Ultrasonic Cleaners as below:

More KHTDS Dual Frequency Ultrasonic Cleaner Specifications and Parameters for Choices

Variable Frequency Ultrasonic Cleaner Specifications

5. HT Mechanical Ultrasonic Cleaning Machine Series

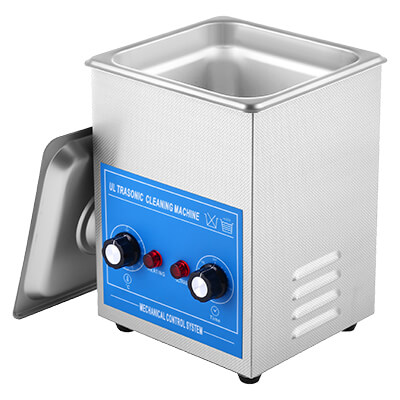

Mechanical Ultrasonic Cleaner Machine
Mechanical Ultrasonic Cleaner Machine

This is a mechanical ultrasonic cleaner with a timer and heater. It is with two rotation switches of timer and heater. You can control the ultrasonic cleaning and water heater by these two switches. The heater can help for a better cleaning effect. Rotate the heating switch clockwise, you can set the target temperature.

Features Description:

  • Operating Mode: Mechanical control with Timer + Heater
  • Timer Settings: 1-20 minutes
  • Temperature Settings: 0-80°C adjustable
  • Standard one-time stamping formed stainless steel ultrasonic cleaning bath.

More HT Mechanical Ultrasonic Cleaning Machine Specifications and Parameters for Choices

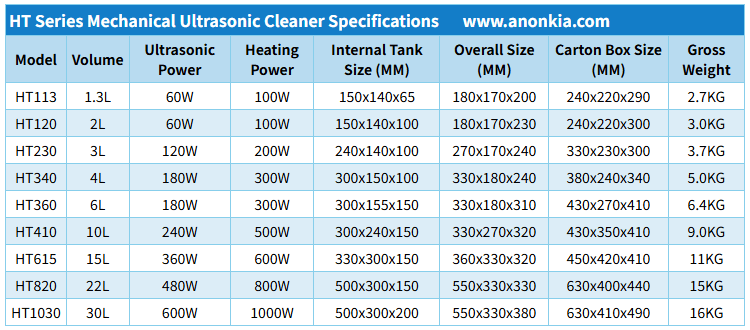

HT Mechanical Ultrasonic Cleaner Machine Specifications

6. T Manual Ultrasonic Washing Machine Series

Ultrasonic Washing Machine
Portable Ultrasonic Washing Machine

This is the mechanical controlled ultrasonic washing machine with a timer. It is with a simple switch, you can control the ultrasonic cleaning by a rotation switch. If you need to make the machine work for a long time, rotate it anticlockwise to “ON”.

Features Description:

  • Operating Mode: Mechanical control with Timer
  • Timer Settings: 1-20 minutes
  • Temperature Setting: No heater
  • Standard one-time stamping formed stainless steel ultrasonic bath

More Portable Ultrasonic Washing Machine Specifications and Parameters for Choices

Ultrasonic Washing Machine Specifications
